The slit lamp is a stereoscopic biomicroscope that emits a focused beam of light with variable height, width, and angle. This unique instrument permits three-dimensional visualization and measurement of the fine anatomy of the anterior segment of the eye
• Multi coated optical lenses
• Binoculars provide best image of Anterior chamber depth perception
• LED bulb provide long life of Illumination with Adjustable light intensity
• Galilean unparalleled Optical
• Drum rotation convenient to shift

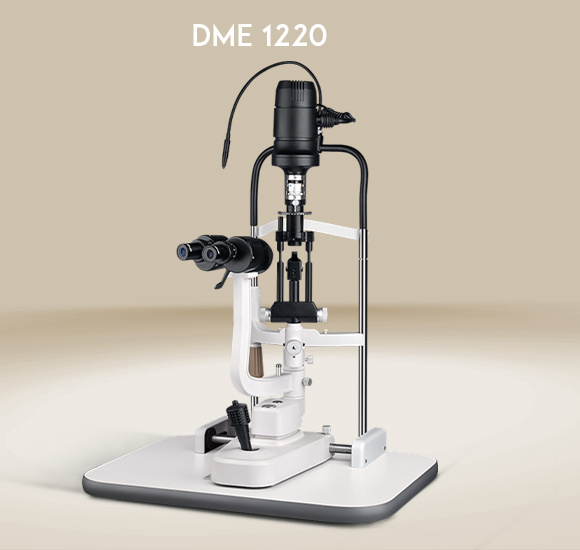

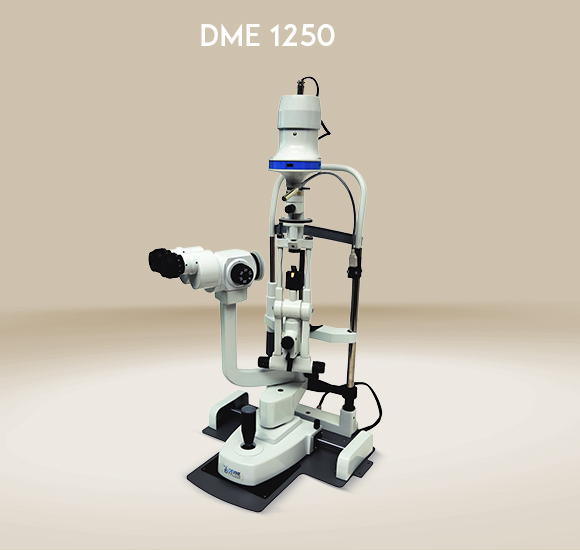

| Model | DME 1250 | DME 1220 |
| Type | Galilean magnification, 13 degree binocular tube with converging optics | |
| Magnification Style | Revolving Drum | |
| Magnification Ratio | 6X, 10X, 16X, 25X, 40X | 1X, 1.6X |
| Stereo Angle | 13 Degree | |
| Eyepiece | 12.5X | 10X and 15X |
| PD Adjustment | 55mm~78.5mm | 52mm to 90mm |
| Diopter Adjustment | -6D~+6D | Illumination Unit |
|---|---|---|
| Slit Width | Continuous from 0mm to 14mm (at 14mm, slit becomes a circle) | 0mm to 12mm |
| Slit Height | Continuous from 1mm to 14mm (at 14mm, slit becomes a circle) | 1mm to 12mm |
| Slit Angle | 0 to 180 degree with horizontal scanning capability | |
| Aperture Diameters | 14mm, 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm | |
| Filter | Heat-absorbing, UV, Cobalt Blue, Red Free | Cobalt Blue, Green and Yellow filter, Two open apertures |
| Slit Inclination | 5 Degree, 10 Degree, 15 Degree, 20 Degree | |
| Illumination bulb | LED | Base |
| Longitudinal | 90mm | |
| Lateral Movement | 100mm | |
| Fine Base Movement | 15mm | |
| Vertical Movement | 30mm | |
| Chinrest | ||
| Vertical Movement | 80mm | |
| Fixation bulb | Green LED | |
| Power | ||
| Power Supply | 100-120V, 220-240V AC | |
| Frequency | 50/60Hz | |
| Fixation bulb | Green LED | |
| Power Consumption | 30VA | |

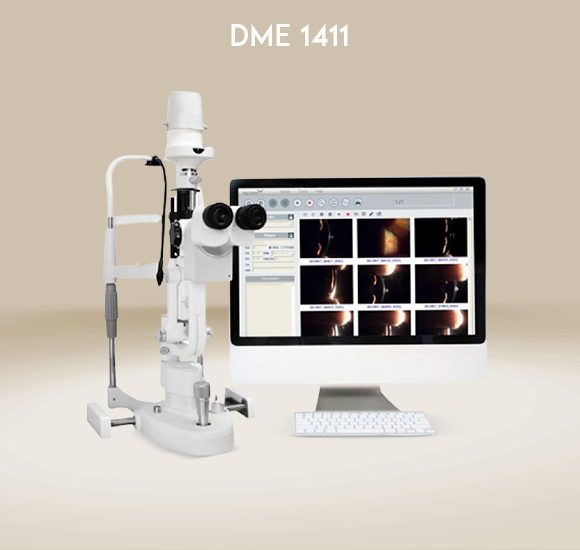

Devine Meditech offer Digital imaging System offer complete solution for slitlamp with digital imaging system. It include Slit Lamp Digital Camera , Image Analysis Software and PC Optional
• 5 Megapixels high definition image resolution produced by the 1/2.5 inch CMOS sensor. Imaging pixel array of 2,592 x 1,944.
• Target area size for auto exposure can be changed easily via moving the mouse lightly.
• For Data transmission easily via plug and play USB. Neither extra hardware nor complicated computer configuration is required.
• PNG, JPG formats are available. All the images in BMP format can be edited for brightness, contrast, sharpness, zoom, etc.
• Practical Software Management
• Simple design and intuitive interface allows easy operation.
• Professional patient information database supports centralized management.

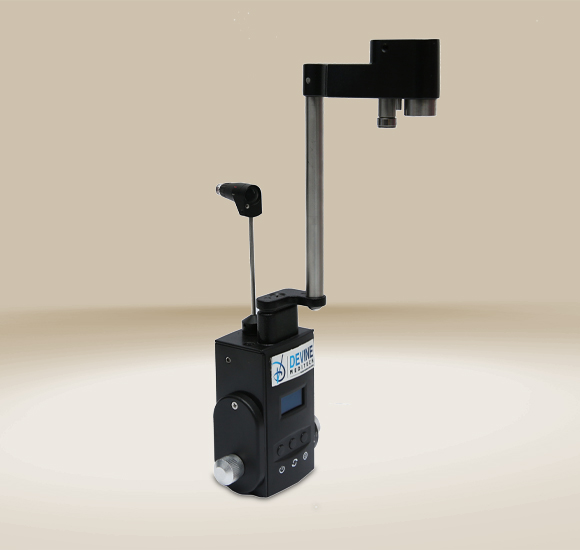

Applanation tonometer is an equipment measures Intraocular pressure in human eye. The test involves using a slit lamp equipped with forehead and chin supports and a tiny, flat-tipped cone that gently comes into contact with the cornea. The test measures the amount of force needed to temporarily flatten a part of human cornea.
| Measuring range | from 0 to 80 mmHg in 2 mmHg increments |
| Accuracy | ± 0,5 mmHg |
| Diameter of the pneumatic face | 3,06 mm |
| Area of applanation | 7.354 mm2 |
| Probe line separation | 430 |

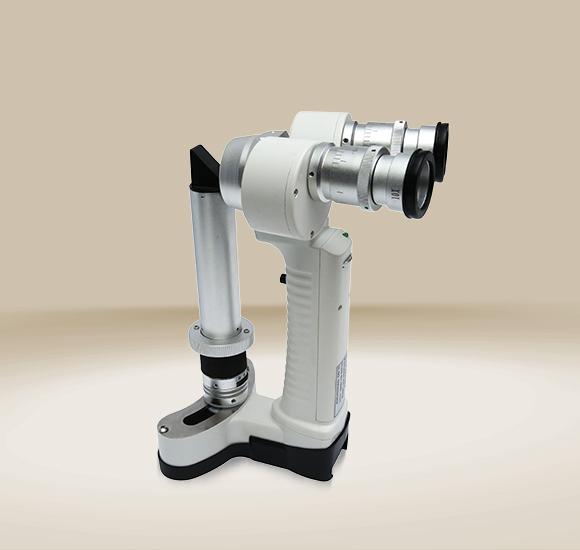

The Slit lamp is an lightweight, single hand operated slit lamp. Ideal for paediatrics, Ward patient, Mobile clinic and Hospital.
• One-touch magnification switch is easy for doctors' inspection.
• Illumination angle max. up to be 60 degree, can get better slit view for cornea etc.
• Both AA rechargeable and dry cell batteries are supported, and convenient to purchase everywhere. Batteries will provide more than 4 hours operating time after full charged.
• Warm LED illumination with 3500k color temperature and long-time working time,creates a perfect observation circumstance and helps doctors relieve the visual fatigue at the same time.
| Model | DME 1115 |
| Microscope Type | Binocular Portable Slit Lamp |
| Angle of convergence | 13° |
| Eyepiece | 10X, 16X |
| Work distance | 80mm(16X),100mm(10X) |
| Pupil distance | 49~75mm |
| Diopter adjustment range | ±7D |
| Slit Width | 0.1mm,0.2mm,0.8mm& Ф1mm,Ф5mm,Ф12mm circle |
| Slit length | 12mm(with width 0.1mm, 0.8mm), 8mm(with width 0.2mm) |
| Slit Angle | ±60° |
| Filters | Neutral Density, Red-free, Cobalt Blue |
| Light Resource | Warm LED, Color Temperature 3500k |
| Illumination Control | Continuously Variable from Low to Full Brightness( ≥250 000 lux) |
| LED Working Voltage | AA, 15VA |
| Battery Type | AA Dry Cell / Rechargeable Batteries |
| Continuous Operating Time | ≥4 hours |
| Dimensions | 320x310x205 mm |
| Net Weight | 835g Approx. |
| Standard Accessories | Carrying Case, Battery Charger,Forehead Support, Instrument Manual |
