Akryl Hydrophilic Intraocular Lens

  • Recent studies proves that there is a significantly difference in contrast sensitivity of spherical and aspheric IOL designs. Contrast sensitivity was better under mesopic conditions with aspheric IOL.
  • Devine Aspheric optics improves optic function by correcting the positive spherical aberration present in the normal cornea resulting in better visual acuity.
  • Devine Hydrophilic IOLs offers advance vision owiny to superior and high quality standard.
  • Akryl 360 square edge tends to reduce PCO risk after implatation by making a mechanical & geometric barrier against cells migration.
  • Akryl aspheric optics corrects spherical aberration coming from both cornea & IOLs helping to maintain better depth of focus.
  • Akryl IOL are 100% individually inspection for MTF using sophisticated IOLA PLUS. Also each IOL’s is checked at all stage of production for optical quality by experts in optic engineering and only the perfect IOL’s reaches the patient.

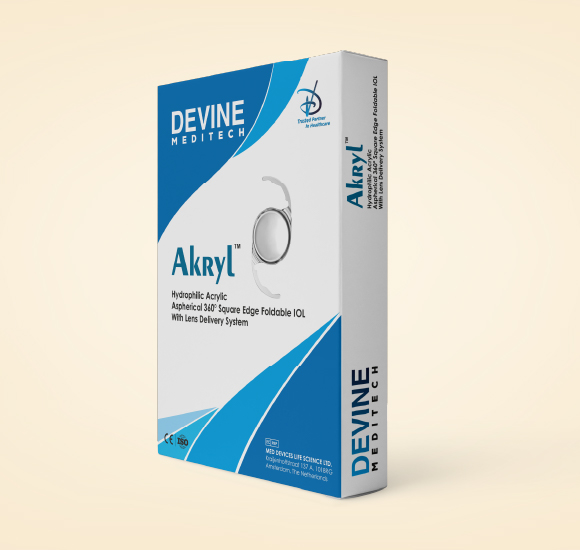

Hydrophilic Aspheric 360° Square Edge IOL


product-media-img

Aspheric 360° Square Edge 'C Loop'

 product-media-img

Aspheric 360° Square Edge 'R Loop'
product-media-img

'C LOOP'
Cartidge size 2.2 mm/2.4 mm

 product-media-img

'R LOOP'
Cartidge size 2.2 mm/2.4 mm

Specification:-


Model Size Design IOL Design Material Refractive Index Optic Design Water Content Light Filtration Colour Optic Haptic Diopter range Sterilization Expiry
DMC 458C Ø 6.00mm x 12.50mm Aspheric Square Edge 'C' Loop One piece Hydrophilic Acrylic Dry 1.50 / Wet 1.46 Biconvex 25.5% U.V Clear Aspheric Modified C Loop -10.0D to +30.0D / 0.5 Increment Steam 3 Year from Manufacture
DMC 458R Ø 6.00mm x 12.50mm Aspheric Square Edge 'R' Loop One piece Hydrophilic Acrylic Dry 1.50 / Wet 1.46 Biconvex 25.5% U.V Clear Aspheric Modified R Loop -10.0D to +30.0D / 0.5 Increment Steam 3 Year from Manufacture

A-Constant:-


Ultrasound A-Scan Optical Biometry
A- Constant 118.0 118.4

Hydrophilic MICS Aspheric 360° Square Edge IOL


product-media-img

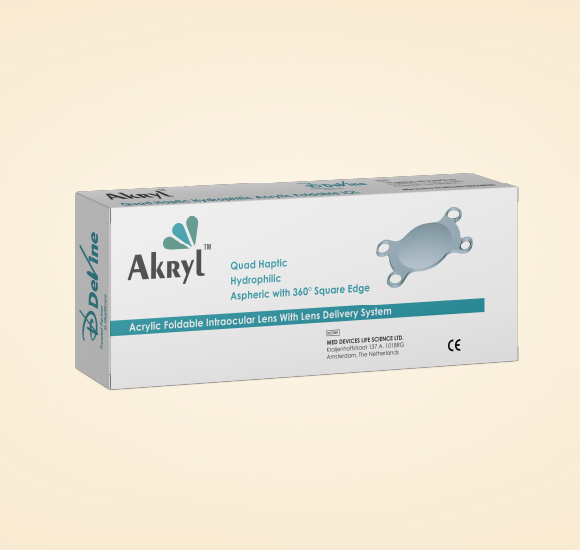

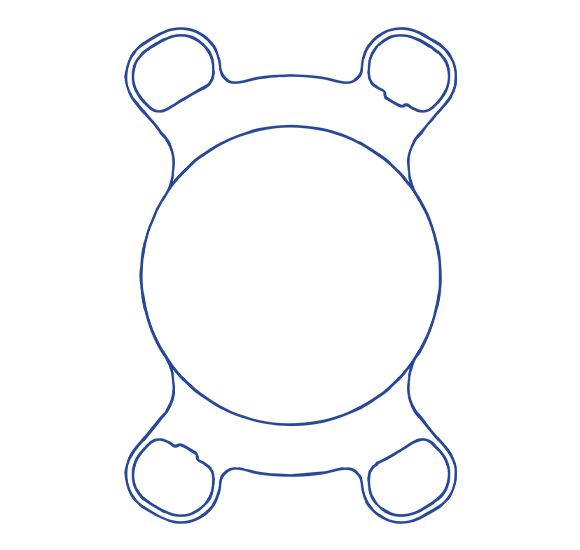

Aspheric 360° Square Edge Quad Haptic

product-media-img

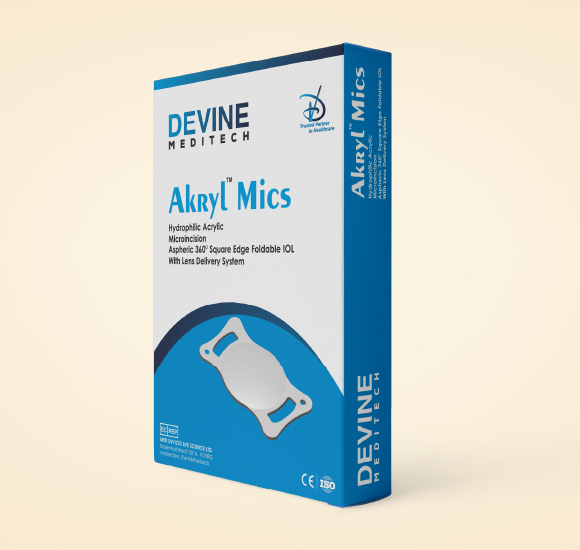

Aspheric 360° Square Edge MICS
product-media-img

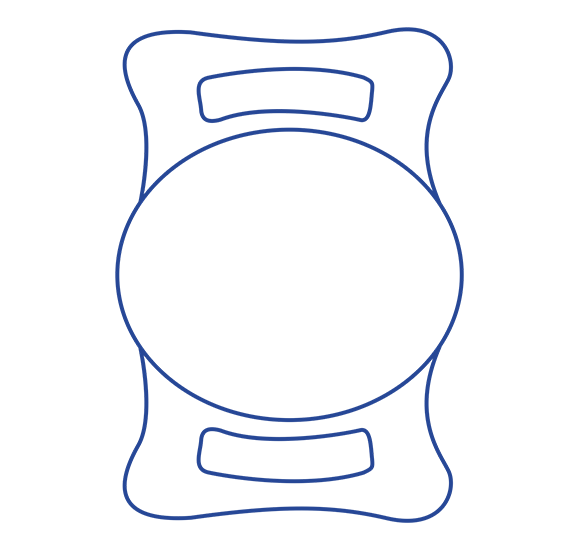

'QUAD LOOP'
Cartidge size 1.8 mm/2.2 mm

 product-media-img

MICS
Cartidge size 1.8 mm/2.2 mm

Specification:-


Model Size Design IOL Design Material Refractive Index Optic Design Water Content Light Filtration Colour Optic Haptic Diopter range Sterilization Expiry
DMC 458Q Ø 6.00mm x 11.00mm Aspheric Square Edge Quad Haptic Loop One piece Hydrophilic Acrylic Dry 1.50 / Wet 1.46 Biconvex 25.5% U.V Clear Aspheric Modified Q Loop -10.0D to +30.0D / 0.5 Increment Steam 3 Year from Manufacture
DMC 458M Ø 6.00mm x 11.00mm Aspheric Square Edge Plate Loop One piece Hydrophilic Acrylic Dry 1.50 / Wet 1.46 Biconvex 25.5% U.V Clear Aspheric Modified M Loop -10.0D to +30.0D / 0.5 Increment Steam 3 Year from Manufacture

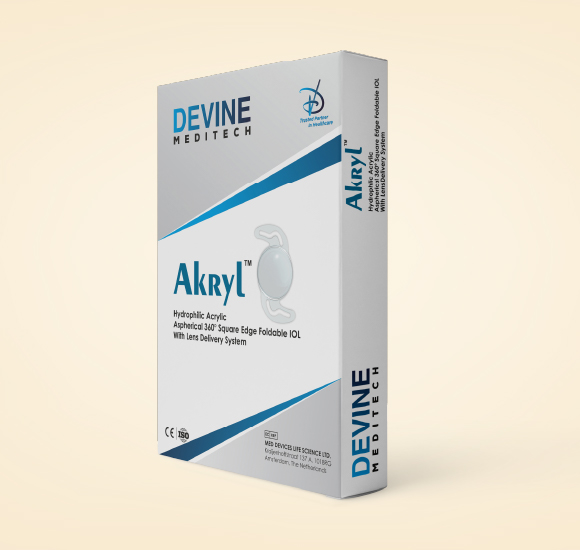

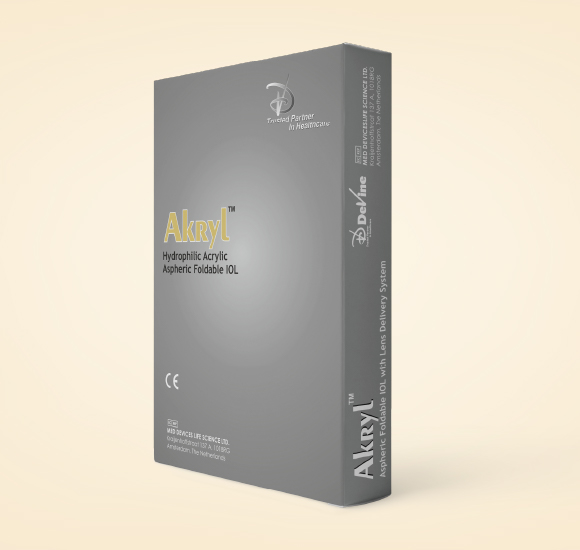

Hydrophilic Aspheric IOL
product-media-img

Aspheric Optics
product-media-img

'R LOOP' 'C LOOP'
Cartidge size 2.2 mm/2.4 mm

Specification:-


Model Size Design IOL Design Material Refractive Index Optic Design Water Content Light Filtration Colour Optic Haptic Diopter range Sterilization Expiry
DMC 457R Ø 6.00mm x 12.50mm Aspheric 'R' Loop One piece Hydrophilic Acrylic Dry 1.50 / Wet 1.46 Biconvex 25.5% U.V Clear Aspheric Modified R Loop -10.0D to +30.0D / 0.5 Increment Steam 3 Year from Manufacture
DMC 457C Ø 6.00mm x 12.50mm Aspheric 'C' Loop One piece Hydrophilic Acrylic Dry 1.50 / Wet 1.46 Biconvex 25.5% U.V Clear Aspheric Modified C Loop -10.0D to +30.0D / 0.5 Increment Steam 3 Year from Manufacture

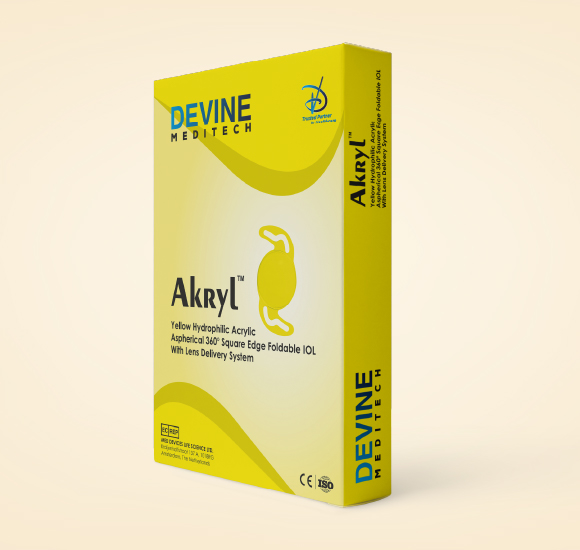

Hydrophilic Yellow Aspheric 360 degree Square Edge IOL
product-media-img

Yellow ASpheric Square Edge
product-media-img

'R LOOP'
Cartidge size 2.2 mm/2.4 mm

Description:-

Devine Yellow series IOL’s incorporates latest technology in UV-A blocking and violet light filtering Material. These yellow IOL’s improve upon the natural yellow chromophore present in the human crystalline lens by providing better protection against harmful UV lights yet allowing optimal blue light transmission , improving contrast sensitivity , visual acuity and colour perception.

Specification:-


Model Size Design IOL Design Material Refractive Index Optic Design Water Content Light Filtration Colour Optic Haptic Diopter range Sterilization Expiry
DMC 460R Ø 6.00mm x 12.50mm Aspheric Square Edge 'R' Loop One piece Hydrophilic Acrylic Dry 1.50 / Wet 1.46 Biconvex 25.5% U.V Yellow Aspheric Modified R Loop -10.0D to +30.0D / 0.5 Increment Steam 3 Year from Manufacture
