Measurement mode | K/R | Refractometery /Keratometry measurement |
REF | Refraction measurement | |
KER | Keratometry measurement | |
Refraction measurement | Vertex distance | 0.0, 12.0, 13.75, 15.00mm |
Sphere | -25.00~+22.00D (0.12/0.25D step) (VD=12mm) | |
Cylinder | 0.00~±10.00D (0.12/0.25 step) | |
Axis | 0 ~ 180° (1° step) | |
Pupil distance | 10~85mm | |
Minimum pupil diameter Measurement | Ø2.0mm | |
Target | Automatic fogging | |

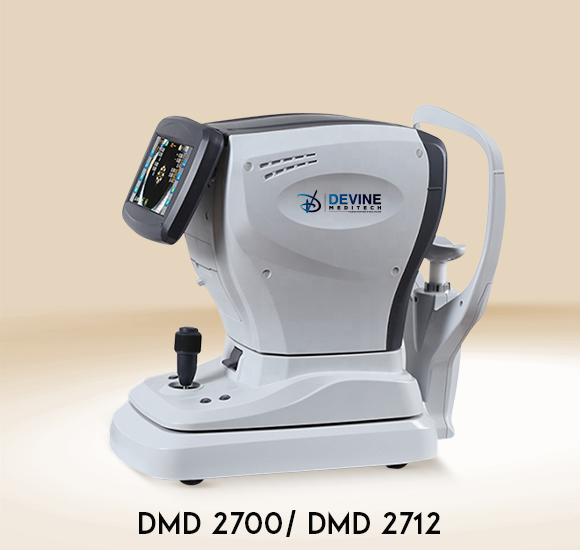

Corneal Curvature measurement (DMD 2712) | Curvature radius | 5 ~ 10mm (0.01mm step) |
Corneal Refractive power | 33.75D ~ 67.50D (0.12/0.25D step) | |
Corneal Astigmatism | 0.00 ~ 15.00D (0.12/0.25D step) | |
Corneal Axis | 0 ~ 180° (1° step) | |
Corneal diameter | 2.0 ~ 12.00 mm | |
Hardware Specifications | Monitor | 7.0 Inch Colour LCD |
Printer | Thermal printer with auto-cutting | |
Power saving function | 5/15 minutes | |
Data output | RS232/Bluetooth | |
Power supply | AC100-240V, 50/60Hz | |
Dimension/Weight | 262(W)*487(D)*467(H)mm/17.5kg | |
Power Consumption | 50 W |
