OPHTHALMIC DIVISION

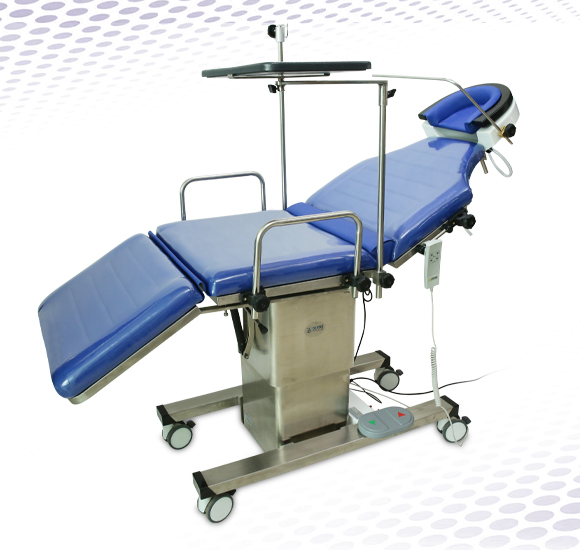

DMO 8660: Motorized Operating Table, Stainless Steel (1 section)

Table designed for carrying out ophthalmic operation and treatments Made of stainless, acid proof steel. Single sectioned / Three sectioned Table top is equipped with side rails for mounting the accessories. The table top is equipped with ophthalmic head rest allowing for stable positioning of the patient head during operation.T-shaped table base as well as placing the table top aside from the base make it easy the access the table top and to place foot operated controllers in required positions.

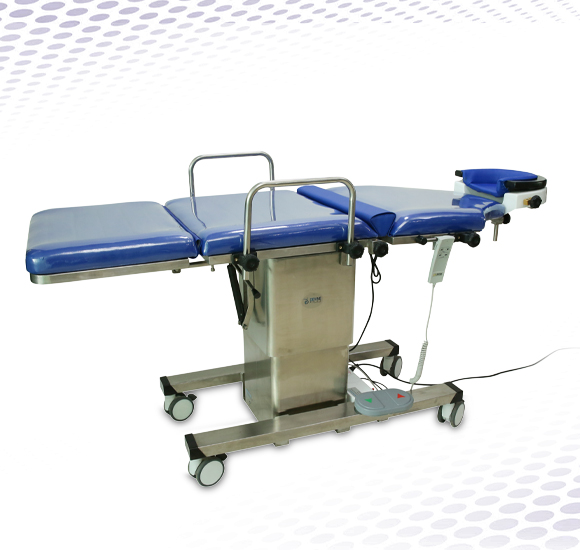

DMO 8665: Motorized Operation Table, Stainless Steel (3 section)

The main purpose of an ophthalmic operating table is to perform surgery with accuracy and facilitate high patient comfort.

Features:-

Table designed for carrying out ophthalmic operation and treatments Made of stainless, acid proof steel.
Single sectioned / Three sectioned Tabletop is equipped with side rails for mounting the accessories.
The table top is equipped with ophthalmic head rest allowing for stable positioning of the patient head during operation
T-shaped table base as well as placing the table top aside from the base make it easy the access the table top and to place foot operated controllers in required positions

Specification:-

Specification/ Model No.	DMO 8655	DMO 8660
	Motorised Table	Motorised Table
No. of Sections	1	3
Total length of Table Top (Head section extra)	1880 mm	1920 mm
Maximum width of Table Top	600 mm	600 mm
Table Top height adjustment	680mm- 840mm	680mm- 880mm
Table movements	Remote Control & Foot Switch	Remote Control & Foot Switch
Hi-Low	Actuator control	Actuator control
Trendelenberg	Gas spring	Gas spring
Battery Back Up	Optional	Optional
Voltage	230 / 110 Volts 50-60 Hz	230 / 110 Volts 50-60 Hz
Weight Capacity	170 kg	250 kg
Gross Weight	130 kg	130 kg
