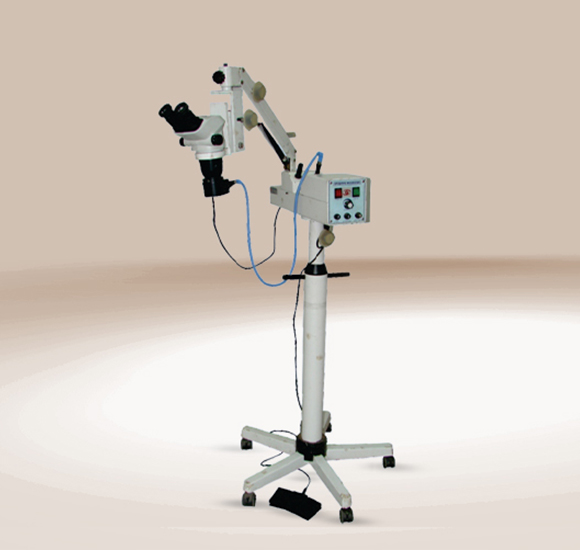

DMF 2540: Ophthalmic Operating Microscope

An operating or surgical microscope is an Ophthalmic Equipment that provides the surgeon with a stereoscopic, high quality magnified and illuminated image of the small structures in the surgical area.

Features
Specification

Compact structure and complete functions.
2.4X ~ 24X zoom (1:5) magnifications, horizontal movement of foot control and fine focusing.
Imported optics ensure the sharp image and even field of view.
Applied in operations and fine examinations of ophthalmology.

Eyepiece magnification	10X
Diopter adjustment	±6D
Pupil distance	50~75mm
Eyepiece	45º inclined
Magnifications of main microscope(diameter of field)	2.4X~24X (52.5~12mm)
Objective lens	F=200
Working distance	181 mm
Illumination source	15V/150W, Medical cold-reflection halogen bulb
Illumination type	6º+0º coaxial illumination
Coaxial Illumination	15V/150W, Medical cold-reflection
Vertical Height Adjustment	Maximum 1465 mm , Minimum 905 mm
Arm Rotation	Motorized foot switch
Input voltage	AC220V±20V, 50HZ, AC110V 60HZ(On Demand )
Power	200VA
