OPHTHALMIC DIVISION

Hydrophobic Aspheric Square Edge Preloaded IOL

Specification:-

Model	Size	Design	IOL Design	Material	Refractive Index	Optic Design	Water Content	Light Filtration	Colour	Optic	Haptic	Diopter range	Sterilization	Expiry
DMC 558pre	Ø 6.00mm x 12.50mm	Aspheric Square Edge 'C' Loop	One piece	Hydrophobic Acrylic	1.56	Biconvex	<0.5%	U.V	Clear	Aspheric	Modified C Loop	10.0D to +30.0D / 0.5 Increment	ETO	3 Year from Manufacture

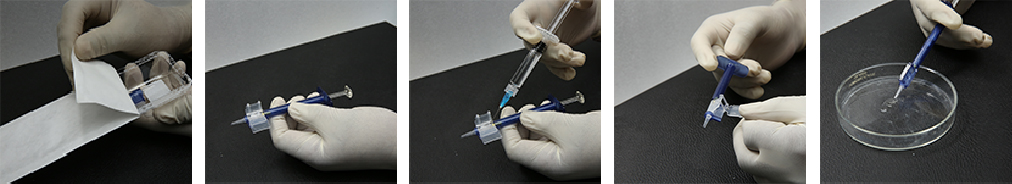

Devine Preloaded IOL delivery system is user friendly and maintains product sterlity. Following the simple step for Preloaded implantation : product-media-img

Akryl Hydrophobic Intraocular Lens

Devine Hydrophobic IOL’S Made from Cast Molded blank from Contamac, UK.

Higher Refractive Index material result in low centre thickness of IOL.
Glistening Free Hydrophobic IOL
The Innovative and proprietary material
Excellent physical and mechanical properties
Smooth and controllable unfolding.
Posterior square enhance edge to minimize PCO.
Negative Aspheric optics provide better contrast sensitivity.
Lower rates of PCO
Static Water Contact angle on the Surface is >90°
Excellent Rotational Stability
Biocompatible, clinically approved efficacy and safety

Hydrophobic Aspheric Square Edge IOL

Specification:-

Model	Size	Design	IOL Design	Material	Refractive Index	Optic Design	Water Content	Light Filtration	Colour	Optic	Haptic	Diopter range	Sterilization	Expiry
DMC 558	Ø 6.00mm x 12.50mm	Aspheric Square Edge 'C' Loop	One piece	Hydrophobic Acrylic	1.56	Biconvex	<0.5%	U.V	Clear	Aspheric	Modified C Loop	10.0D to +30.0D / 0.5 Increment	ETO	3 Year from Manufacture

A-Constant:-

A-Constant	Ultrasound A-Scan	Optical Biometry
SRK T Formula	118.4	118.7
SRK II Formula	118.7	119.0

Hydrophobic Aspheric Yellow Square Edge IOL

Specification:-

Model	Size	Design	IOL Design	Material	Refractive Index	Optic Design	Water Content	Light Filtration	Colour	Optic	Haptic	Diopter range	Sterilization	Expiry
DMC 560	Ø 6.00mm x 12.50mm	Aspheric Square Edge 'C' Loop	One piece	Hydrophobic Acrylic	1.56	Biconvex	<0.5%	U.V	Yellow	Aspheric	Modified C Loop	10.0D to +30.0D / 0.5 Increment	ETO	3 Year from Manufacture
